HHH Chain Hook 3t (with YF3) CYF3 1 set

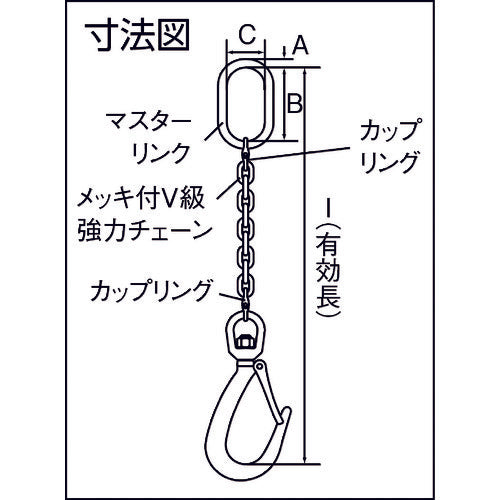

Catalogue number: CYF3 Features: ● Hook, chain, and ring are already connected, so it can be used immediately. ● Swivel foundry hook can remove twists in wires and chains, preventing the load from rotating. ● Comes with a safety tag. Applications: ● For lifting steel plates. ● For lifting loads in civil engineering and construction work. Specifications: ● Basic load capacity (t): 3 ● Chain wire diameter (mm): 10 ● Effective length l (m): 0.9 ● Type: Swivel foundry hook ● Master link dimensions (mm) a: 17 ● Master link dimensions (mm) b: 140 ● Dimensions (mm) A: 17 ● Dimensions (mm) B: 140 ● Dimensions (mm) C: 70 ● Breaking load (kN): 150 ● Load capacity (t): 3 Material/Finish: ● Special alloy steel
