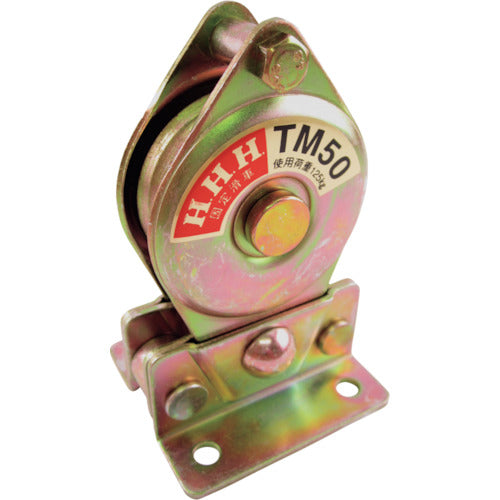

Catalogue number: TM50 Features: ●The base and wheels can be separated, so even pre-processed ropes can be easily passed through. Applications: ●For loading and transporting work and as a rope guide. Specifications: ●Basic load capacity (t): 0.125 ●Maximum rope diameter (mm): 8 ●Number of wheels: 1 ●Wheel diameter (mm): 50 ●Dimensions (mm) A: 102 ●Dimensions (mm) B: 65 ●Dimensions (mm) C: 61 ●Sheave bearing: Metal ●Maximum rope diameter: 8mm Material/Finish: ●Steel Caution: ●Make sure to install in a place with sufficient strength. ●When rotating at high speeds using electric equipment, use a model with bearings.
