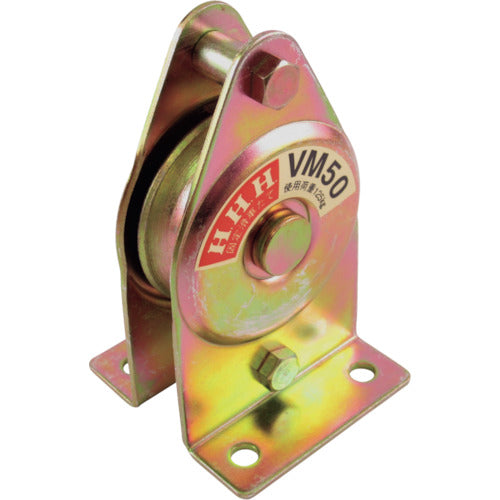

Catalogue number: VM50 Features: ● A simple and inexpensive fixed pulley. Applications: ● For loading and transporting work and as a rope guide. Specifications: ● Basic load capacity (t): 0.125 ● Maximum rope diameter (mm): 8 ● Number of wheels: 1 ● Wheel diameter (mm): 50 ● Dimension (mm) A: 100 ● Dimension (mm) B: 58 ● Dimension (mm) C: 62 ● Sheave bearing: Metal ● Bolt mounting type Material/Finish: ● Steel Caution: ● Be sure to install in a place with sufficient strength. ● Use a pulley with bearings when rotating at high speeds using electric equipment, etc.
