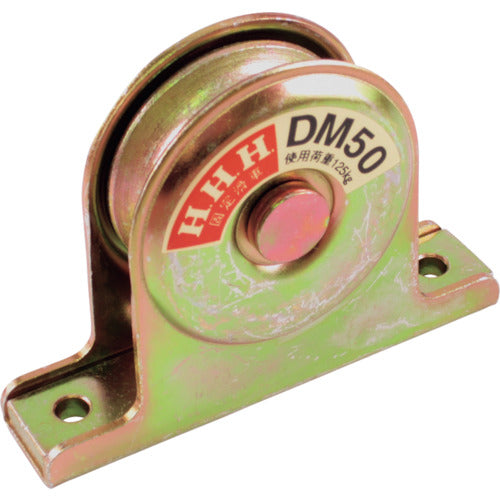

Catalogue number: DM50 Features: ● A simple and inexpensive fixed pulley. ● Can be installed in narrow spaces. Applications: ● For loading and transporting work and as a rope guide. Specifications: ● Basic load capacity (t): 0.125 ● Maximum rope diameter (mm): 8 ● Number of wheels: 1 ● Wheel diameter (mm): 50 ● Dimension (mm) A: 75 ● Dimension (mm) B: 100 ● Dimension (mm) C: 35 ● Sheave bearing: Metal ● Maximum rope diameter: 8mm Material/Finish: ● Steel Caution: ● Be sure to install in a place with sufficient strength. ● Use a pulley with bearings when rotating at high speed using electric equipment, etc.
