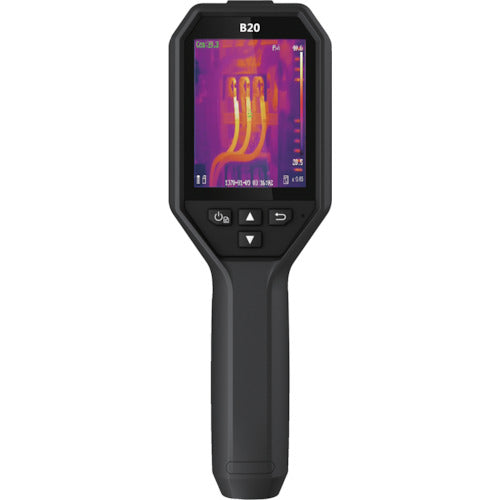

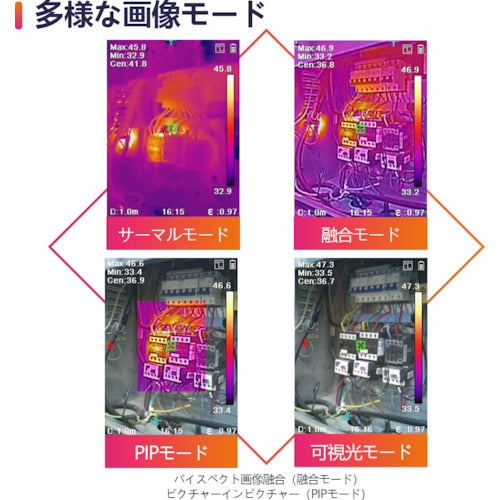

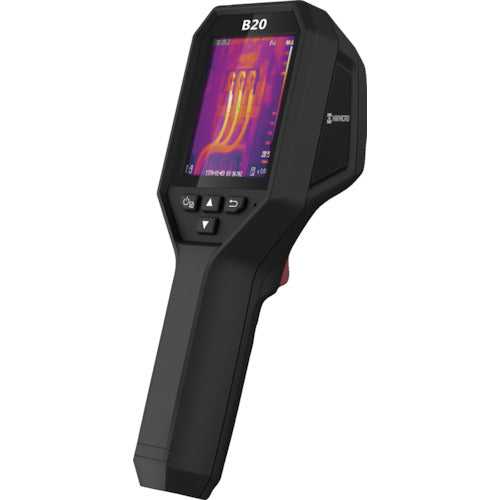

Catalog No.: B20 Features: ● Thermal, bispectral image fusion, PIP and visible light modes can be set according to various business needs. ● Five color patterns can be set according to your preference. ● Connect to mobile devices via built-in Wi-Fi and quickly share images with HIKMICRO Viewer app. Applications: ●Electrical predictive maintenance, building inspection, HVAC inspection Specifications: ●Measurement temperature range (℃): -20 to 550 ●Minimum temperature display (℃): 0.1 ●Measurement field of view (°): 55 x 42 ●Spatial resolution (mrad): 3.3 ●Operating temperature range (℃): -10 to 50 ●Power supply (V): Lithium-ion battery (built-in) ●Wi-Fi: 802.11b/g/n (2.4GHz) ●Operating temperature: -10℃ to 50℃ ●Storage temperature: -20℃ to 60℃ ●Protection level: IP54 ●Interface: USB Type-C ●Pixel spacing: 12μm ●Measurement wavelength: 8 - 14μm ●NETD: ＜ 40mK (@25℃), F#=1.0 ●Focal length: 3.6mm ●FOV (field of view): 37.2°×50.0° ●Frame rate: 25Hz ●Focus system: Fixed ●IFOV (Instantaneous Field of View): 3.3mrad●Aperture: F1.0●Minimum Focus Distance: 0.3m (0.98ft)●Visible Light Resolution: 1600 × 1200 (2MP)●FOV: 55° × 42°●High Temperature Alarm: Voice Alarm●Recording Media: EMMC (16GB)●Number of Recordable Images: 90000●Image File Format: BMP (including measurement data)●LED Light: Yes●Power Consumption: 1.8W●Battery: Lithium-ion Rechargeable Battery●Battery Life: 6 Hours●Thermal Image Resolution: 256×192 (49152 pixels)●NETD: ＜ 40 mK (@ 25℃, F#=1.0)●Temperature Measurement Range: -20℃ to 550℃●Accuracy: When the environmental temperature is 15℃ to 35℃ and the target temperature is above 0℃, the accuracy is maximum. (±2°C, ±2%) Frame rate: 25Hz LCD display: 3.2 inches Battery life: 8 hours Material/Finish: Polycarbonate, ABC resin Set contents/Accessories: USB cable, power adapter, strap
