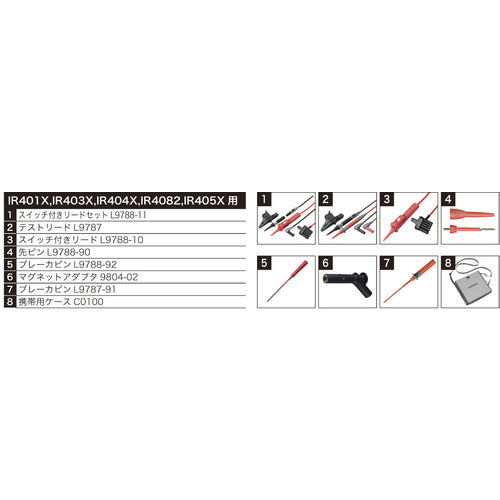

Catalog number: IR4032-10 Features: ●Analog insulation resistance tester certified to JIS C 1302. ●A convenient 3-range (125V/250V/500V) model in one unit. ●Includes test leads (L9787) with 35mm tip length. ●Rugged design (drop-proof) that can withstand a 1m drop. ●Simple scale that allows you to read measured values reliably. ●Features a live wire warning red LED that notifies you of the occurrence of dangerous voltage. Applications: ●For insulation resistance measurement. ●For electrical work. ●For building maintenance and equipment construction. ●For inspection and maintenance work. ●For communication equipment and instrumentation equipment (new construction and regular inspections). ●For design work. Specifications: ● Rated measurement voltage (V/MΩ): 125/100, 250/100, 500/100 ● Minimum display (MΩ): 0.01 ● AC voltage (V): 600 ● DC voltage (V): - ● Width (mm): 152 ● Depth (mm): 42 ● Height (mm): 92 ● Power supply (V): 4 AA alkaline batteries (LR6) (included) ● Width (mm): 152 ● Depth (mm): 40 ● Height (mm): 92 ● Compliance standards: JIS C 1302 certified, EN61010 (safety), EN61326 (EMC) ● Measurement range (V): 125/250/500 ● Functions: Backlight, drop proof, battery voltage check, live wire warning, discharge function, auto power save (APS), battery over-discharge prevention function Material/Finish: ● Resin, plastic Set contents/accessories: ● Lead set (L9787) x 1 ● Carrying case (C0108) x 1 ● AA alkaline batteries (LR06) x 4 ● Instruction manual x 1 Caution: ● Never measure points with a higher value than the category indicated on the meter. Doing so may result in serious accidents such as electric shock.
