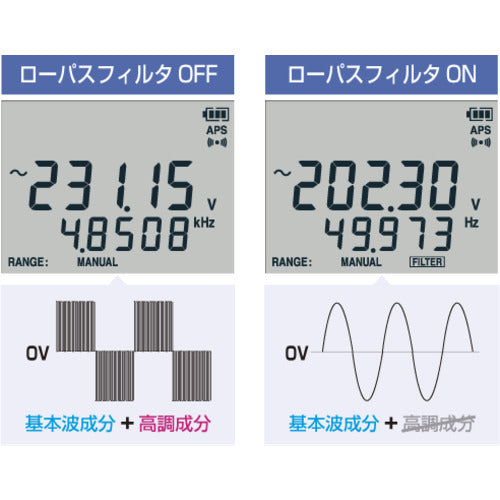

Catalog number: DT4224 Features: ● Voltage input error protection function (breaker tripless) prevents power outages and burns caused by incorrect input. ● Robust design (drop proof) that can withstand a 1m drop. ● Standard type with DC V basic accuracy of ±0.5% and AC V frequency characteristics of 40Hz to 1kHz. ● Comes with a bright, easy-to-read backlight. ● Harmonics are cut with a 100Hz/500Hz low-pass filter. ● Wide operating temperature range of -10℃ to 50℃. ● Highly safe, compact, and lightweight design. Applications: ● For general electrical work. ● For research and development. ● For electrical and electronic circuit design, manufacturing, inspection, and service. ● For indoor electrical work and electrical equipment construction and maintenance. Specifications: ● DC voltage (V): 600 ● AC voltage (V): 600 ● Resistance (Ω): 60M ● Detection method: True RMS rectification ● Power supply (V): 1 AAA alkaline battery (included) ● Width (mm): 72 ● Depth (mm): 38 ● Height (mm): 149 ● Power supply: 1 AAA alkaline battery (included) ● Capacitor (m): 10 ● Maximum display (count): 6000 ● Compliance standards: EN61010 (safety), EN61326 (EMC), measurement category: CAT4 300V, CAT3 600V ● Dustproof and waterproof (EN 60529): IP 42●AC voltage (V): 6.000/60.00/600.0●DC voltage (V): 600.0m/6.000/60.00/600.0●Resistance (Ω): 600.0/6.000k/60.00k/600.0k/6.000M/60.00M●Capacitor (F): 1.000u/10.00u/100.0u/1.000m/10.00m●Measurement functions: Frequency, continuity, diode●Functions: Drop proof, breaker tripless, auto range, manual range, value hold, auto hold, backlight, low pass filter, auto power save (APS), battery level, over-input warning, relative value display (relative) Material/Finish: ●Resin, plastic Set contents/accessories: ● Test lead (DT4911) x 1 ● AAA alkaline battery (LR03) x 1 ● Instruction manual x 1 ● Holster (attached to the main unit)
