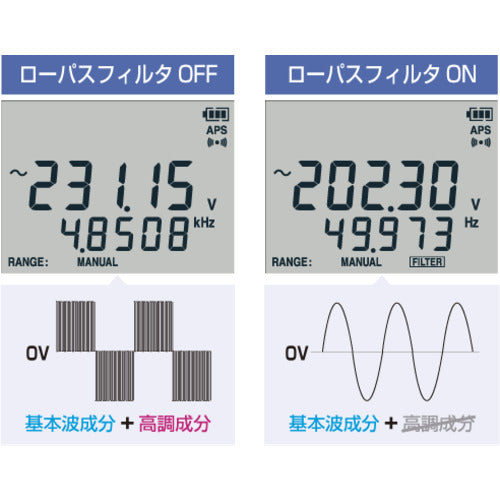

Catalog number: DT4252 Features: ●Standard digital multimeter with high safety and reliability. ●Standard type with DC V basic accuracy of ±0.3% and AC V frequency characteristics of 40Hz to 1kHz. ●Rugged design that can withstand a 1m drop. ●Equipped with many functions such as capacitor and frequency measurement. ●Model that can measure DC and AC current. ●Comes with a bright and easy-to-read backlight. ●Harmonics are cut with a low-pass filter of 100Hz/500Hz. ●Wide operating temperature range of -10℃ to 50℃. ●USB communication function for PC measurement (requires optional DT4900). Applications: ●For general electrical work. ●For research and development. ●For electrical and electronic circuit design, manufacturing, inspection, and service. ●For indoor electrical work and electrical equipment construction and maintenance. Specifications: ● DC voltage (V): 1000 ● AC voltage (V): 1000 ● DC current (A): 10 ● AC current (A): 10 ● Resistance (Ω): 60M ● Detection method: True RMS rectification ● Power supply (V): 4 AAA alkaline batteries (included) ● Width (mm): 84 ● Depth (mm): 52 ● Height (mm): 174 ● Power supply: 4 AAA alkaline batteries (included) ● Maximum display (count): 6000 ● Capacitor (m): 10 ● Compliance standards: EN61010 (safety), EN61326 (EMC), measurement category: CAT4 600V, CAT3 1000V ● Dustproof and waterproof (EN 60529): IP 42●AC voltage (V): 6.000/60.00/600.0/1000●DC voltage (V): 600.0m/6.000/60.00/600.0/1000●Resistance (Ω): 600.0/6.000k/60.00k/600.0k/6.000M/60.00M●Capacitor (F): 1.000u/10.00u/100.0u/1.000m/10.00m●AC current (A ): 6.000/10.00●DC current (A): 10.00/6.000●Measurement functions: Frequency, continuity, diode●Functions: Drop proof, auto range, manual range, value hold, auto hold, backlight, low pass filter, maximum minimum average (MAX/MIN/AVG), auto power save (APS), battery level, over-input warning, relative value display (relative) Material/Finish: ●Housing: PPE Set contents/Accessories: ●Test lead (L9207-10) x 1●AAA alkaline battery (LR03) x 4●Instruction manual x 1●Holster (attached to the main unit) Caution: ●Never measure a measurement point with a value higher than the category displayed on the meter. This may lead to serious accidents such as electric shock.
