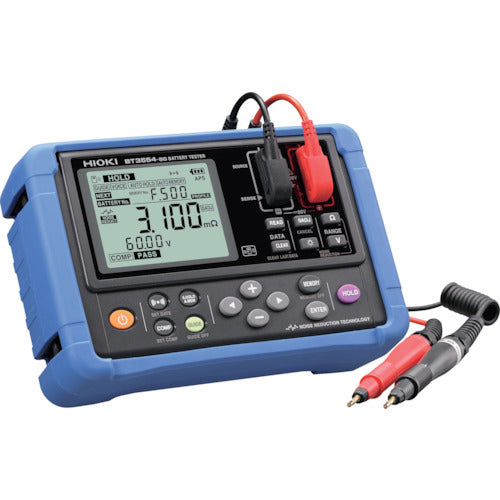

HIOKI Battery Tester BT3554-51 BT3554-51 1 unit

Catalog number: BT3554-51 Features: ●The measurement and recording voice guide makes it possible to efficiently diagnose deterioration of UPS and lead-acid batteries. ●Measurements can be made without power interruption while the battery is connected to the device. ●The fastest time from measurement to saving is about 2 seconds. Applications: ●For measuring the internal resistance and voltage of batteries. Specifications: ● DC voltage (V): 60 ● Resistance (Ω): 3 ● [Resistance measurement range] 3mΩ (maximum display 3.100 mΩ, resolution 1 μΩ) to 3 Ω range (maximum display 3.100 Ω, resolution 1 mΩ), 4 switching Measurement accuracy: ±0.8% rdg ±6 dgt (3 mΩ range only ±1.0% rdg ±8 dgt) Measurement current frequency: 1 kHz ±30 Hz, 1 kHz ±80 Hz when noise frequency avoidance function is enabled Measurement current: 160 mA (3 mΩ/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range) Open terminal voltage: 5 V max. ● [Voltage measurement range] ±6 V (maximum display ±6.000 V, resolution: 1 mV) to ±60 V (maximum display ±60.00 V, resolution: 10 mV), 2 switching, Measurement accuracy: ±0.08% rdg ±6 dgt●[Temperature measurement accuracy] Measurement range -10°C to 60°C, Maximum display 60.0°C, Resolution 0.1°C, Measurement accuracy* ±1.0°C*When using Clip-type Lead with Temperature Sensor 9460*When using Temperature Probe 9451, add ±0.5°C (cable length 1.5 m)*When using Temperature Probe 9451s, add ±0.5°C (cable length 0.1 m)Accuracy with BT3554-50 alone: ​​When using dummy input: ±0.5°C●[Maximum allowable input voltage] DC 60 V max. AC cannot be input●[Measurement time] 100 ms●[Comparator] Comparison of set threshold value and measured value, notificationJudgment notification method: Result display (segment) as shown in the following table, buzzer soundWhen voltage value (high): Resistance value (low) = PASS, Resistance value (medium) = WARNING, Resistance value (high) = FAILFor voltage value (low): Resistance value (low) = WARNING, Resistance value (medium) = WARNING, Resistance value (high) = FAILWhen the judgment result is WARNING or FAIL, the red backlight lights up in conjunction with the buzzer sound.Setting the voltage judgment method: ABS (absolute value judgment), POL (± polarity judgment)Settings saved: 200 tables●[Measurement record guide]Operation: The battery number to be measured next is notified by the main unit screen display and voice. *Voice is output from smartphone/tablet when using Z3210 and compatible application (GENNECT Cross).Preparation: Transfer profile information registered with compatible application (GENNECT Cross / GENNECT ONE) to the main unit●[Communication interface]USB, Bluetooth wireless communication (when Z3210 is installed)●[Other functions]Temperature measurement (-10.0℃ to 60.0℃), zero adjustment, hold, auto hold, Auto memory, Auto power save, Clock Set contents/Accessories: 9465-10 pin type lead, Zero adjustment board, Application software CD (SF4000 GENNECT ONE), Neck strap, 8 AA alkaline batteries (LR6), Z5050 fuse set, USB cable, C1014 carrying case, Z5041 protector, Instruction manual
