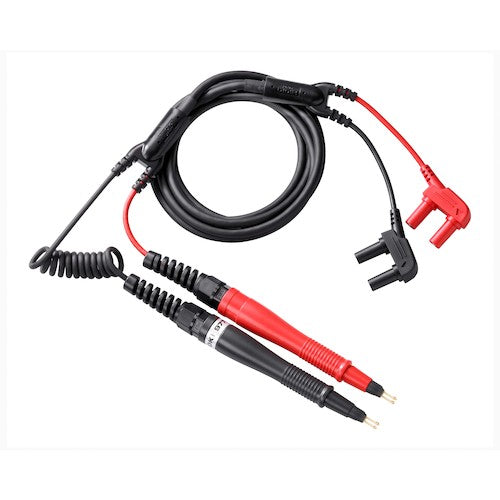

HIOKI pin type lead 9772 1 unit

Catalog number: 9772 Features: ● A pin-type lead with a 4-terminal structure that can be used in narrow environments where it is difficult to contact the measurement target. ● Two spring-type retractable pins with an outer diameter of 1.8 mm that are excellent in strength are arranged in parallel to ensure stable contact with the measurement target, and measurements can be made using the inspection hole in the battery terminal cover. ● Tip pin replacement repair is possible. ● Customers can also purchase tip pin 9772-90 to replace it themselves. Specifications: ● Compatible models: RM3548 ● Cord length (mm): 1900 ● Rated current: AC/DC2A ● Continuous operating temperature and humidity range: 0°C to 40°C, 80%rh or less (no condensation) ● Storage temperature and humidity range: -10°C to 50°C, 80%rh or less (no condensation) ● Place of use: Indoors, altitude 2000m or less ● Maximum rated voltage to ground: DC60V, AC30Vrms, AC42.4Vpeak
