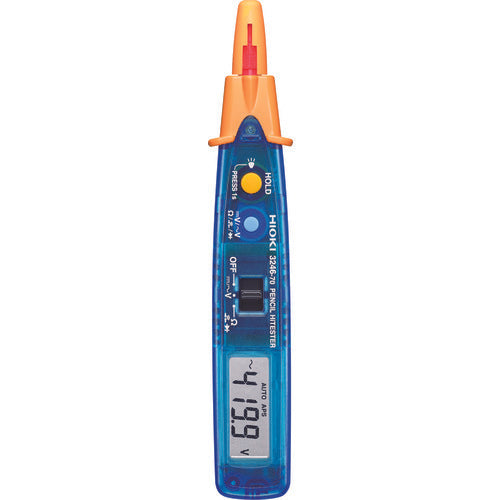

HIOKI Pencil Tester 3246-70 3246-70 1 unit

Catalog number: 3246-70 Features: ●A pencil-shaped digital multimeter with integrated test leads and main body. ●A penlight to illuminate the measurement point and a backlit LCD display. ●The conduction range provides overvoltage protection up to AC600V. Applications: ●For general electrical work. ●For electrical and electronic circuit design, manufacturing, inspection, and service. ●For indoor electrical work and electrical equipment construction and maintenance. Specifications: ● DC voltage (V): 600 ● AC voltage (V): 600 ● Resistance (Ω): 41.99M ● Detection method: Average value rectification (MEAN) ● Power supply (V): 1 coin-type lithium battery (CR2032) (included) ● Width (mm): 30 ● Depth (mm): 26.5 ● Height (mm): 182 ● Power supply: 1 coin-type lithium battery (CR2032) (included) ● Maximum display (count): 4199 ● Compliance standards: EN61010 (safety), EN61326 (EMC), measurement category: CAT4 300V, CAT3 600V●AC voltage (V): 4.200/42.00/420.0/600●DC voltage (V): 420.0m/4.200/42.00/420.0/600●Resistance (Ω): 420.0/4.200k/42.00/420.0k/4.200M/42.00M●Measurement functions: continuity, diode check●Functions: auto range, manual range, value hold, auto power save (APS), battery life warning, over-input warning (OF), penlight, backlight Set contents/accessories:●Coin-type lithium battery (CR2032) (for built-in monitor)●Instruction manual x 1●Cap (red/black) x 1
