HIOKI Wireless Voltage/Thermocouple Logger LR8515 LR8515 1 unit

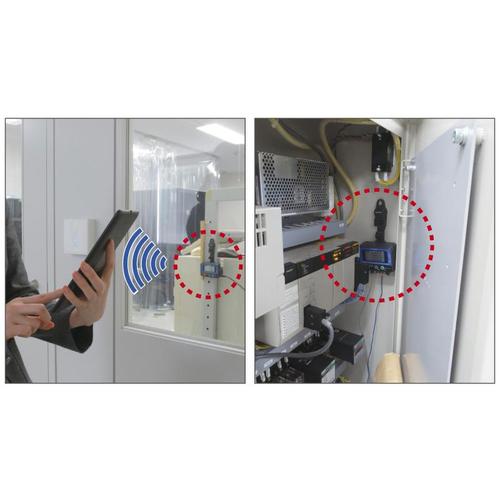

Catalog number: LR8515 Features: ●A wireless compact logger that can record sensor output and analog output of equipment (sensor sold separately). ●One unit can measure everything from minute voltages of pyranometers and various sensors to temperature measurement. ●A small 2-channel model that does not require much space for installation. ●Real-time collection is also possible with the LR8410 or LR8416. ●Measurement data can be retained even when communication is interrupted. ●3-way power supply (AC adapter, AA alkaline battery, external power supply). ●Memory capacity of 500,000 data per 1 channel. ●Measurement data can be collected to a tablet or PC using Bluetooth wireless technology. Applications: ●For measuring DC voltage ±50V. ●For environmental measurement. Specifications: ● Measurement temperature range (℃): -200 to 999.9 ● Minimum temperature display (℃): 0.1 ● Width (mm): 85 ● Depth (mm): 38 ● Height (mm): 75 ● Power supply (V): 2 AA alkaline batteries (included) ● Voltage (V): DC ±50 ● Thermocouple: K, T ● Power supply: 2 AA alkaline batteries (included) ● Compliance standards: EN61010 (safety), EN61326 (EMC) ● Measurement items: 2ch (voltage and thermocouple can be set for each channel, insulation between channels), voltage and thermocouple (K, T) ● Input terminal: M3 screw terminal block ● Recording method: One-time recording (recording stops when memory is full) ), endless recording (overwrites old data when memory is full) ● Recording mode: Instantaneous value recording (records instantaneous values ​​at each recording interval) ● Recording interval: 0.1/0.2/0.5/1/2/5/10/20/30 seconds, 1/2/5/10/20/30/60 minutes ● Width x Depth x Height: 85 x 38 x 75 mm ● Display contents: Measurement value, recording interval, date, time, alarm, battery level, number of recorded data, maximum value, minimum value ● Functions: Bluetooth, alarm, scaling, recording operation retention, prevention of erroneous operation, comment memory, power saving, password authentication ● Power supply: 2 x AA alkaline batteries (included) Set contents/accessories: ● 2 x AA alkaline batteries (LR06) (built-in) ● Operation guide x 1, Precautions for use with radio waves x 1 ● CD-R (instruction manual, logger utility, wireless logger collector) x 1 Note: ● Thermocouples are sold separately.
