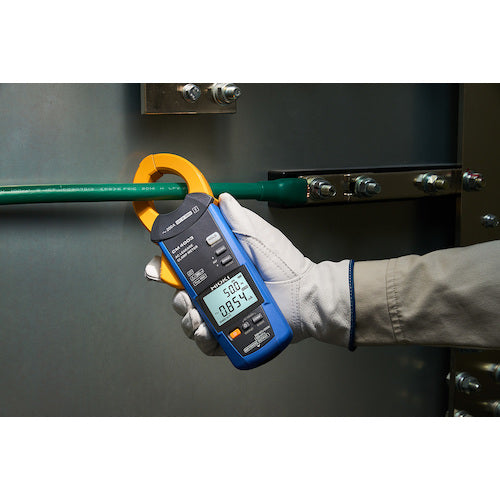

HIOKI AC Leak Clamp Meter Wireless Set CM4003-90 CM4003-90 1 unit

Catalog number: CM4003-90 Features: ● Compatible with wireless, and measurement values ​​can be transferred to smartphones and tablets. ● Smart and more accurate leakage current detection. ● Newly designed sensor can accurately detect minute leakage current (up to φ40mm diameter). ● Wide measurement range from leakage current to load current. ● Complies with the performance standards of IEC/EN61557-13, the international standard for leak clamps. ● Comparator function reduces detection time. ● Output function (waveform/RMS) records waveforms and fluctuations in combination with a recorder. ● External power supply function allows long-term continuous measurement using an AC adapter (optional). Applications: ● For dealing with leakage current problems and insulation management. Specifications: ●Leakage current (mA): 6,000 ●AC current (A): 200.0 ●Power supply (V): 2 AA alkaline batteries (LR6) ●Continuous use time: 48 hours (when Z3210 is not installed), 30 hours (when Z3210 is installed, wireless communication) ●Power supply: 2 AA alkaline batteries (LR6) ●Continuous use time: 48h (when Z3210 is not installed), 30h (when Z3210 is installed, wireless communication)●AC current range: 6.000Ma, 60.00mA, 600.0mA, 6.000A, 60.00A, 200.0A, 6 ranges, true RMS rectification●Basic accuracy: 45Hz to 400Hz: ±1.0%rdg±5dgt (6.000mA to 6.000A), ±1.5%rdg±5dgt (60.00A, 200.0A), 15Hz to 45Hz, 400Hz to 2kHz: ±2.0%rdg±5dgt ●Accuracy range: 0.060mA to 200.0A●Frequency range: 15.0Hz to 2000Hz●Crest factor: 3 (except 200.0A range), 1.5 (200.0A range)●Filter function: ON cutoff frequency 180Hz ±30Hz (-3dB)●Output function: RMS (effective value output), WAVE (waveform output)●Other functions: Maximum, minimum, average, maximum peak value, minimum peak value display, display value hold, auto hold, backlight, auto power save, buzzer sound, event count display, comparator, simple event recording, inrush current measurement●Display update rate: 5 times/second●Maximum measurement conductor diameter (mm): 40 Set contents/accessories:●Carrying case x 1●AA alkaline battery (LR03) x 2●Instruction manual x 1●Connection cable x 1●USB cable x 1
