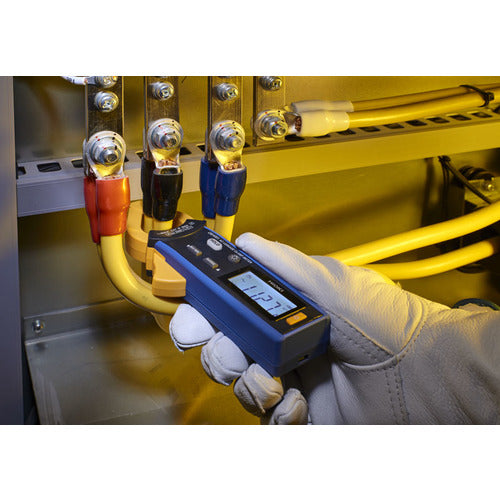

Catalogue number: CM4001 Features: ● Extremely easy to clamp, shortening the time required to detect earth leakage. ● The sensor part is shaped to be easy to clamp, shortening work time. ● The comparator function notifies you of the comparison results with sound and light, allowing you to quickly identify the location of the leakage. ● The filter function displays only the commercial frequency components. Applications: ● For detecting earth leakage. ● For checking leakage current in ground wires. ● For preventive maintenance of equipment. ● For checking load current such as breaker capacity. ● For indoor electrical work and construction and maintenance of electrical equipment. Specifications: ●Leakage current (mA): 60 ●AC current (A): 600 ●Detection method: True RMS ●Power supply (V): 1 x AAA alkaline battery (LR03) (included) ●Width (mm): 37 ●Depth (mm): 27 ●Height (mm): 160 ●Power supply: 1 x AAA alkaline battery (LR03) (included) ●Maximum display (count): 6000 ●Maximum measurement conductor diameter (mm): 24 ●Compliant standards: EN61010 (safety), EN61326 (EMC), current measurement category: CAT3 300V●AC current (A): 60.00m/600.0m/6.000/60.00/600.0●Measurement functions: AC current, inrush current (Inrush), peak value (Peak), frequency, comparator function (COMP), event function (EVENT)●Functions: auto range, manual range (RANGE), value hold (HOLD), auto hold (AUTO HOLD), backlight, low pass filter (FILTER), maximum/minimum/average (MAX/MIN/AVG), auto power save (APS), battery level, over-input warning Set contents/accessories:●Carrying case x 1●AAA alkaline battery (LR03) (for built-in monitor) x 1●Strap x 1●Instruction manual x 1
