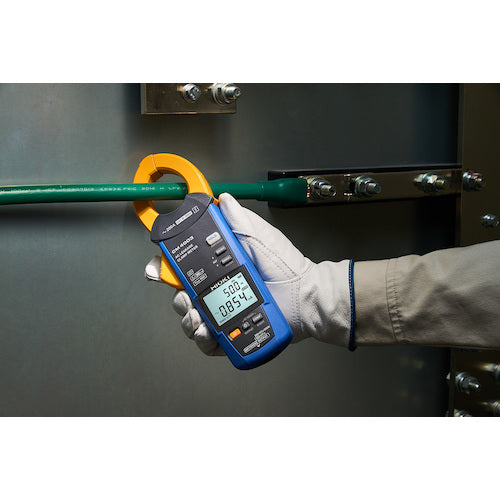

HIOKI AC Leak Clamp Meter CM4002 CM4002 1 unit

Catalog number: CM4002 Features: ●Smart and highly accurate leakage current detection. ●Compatible with wireless, measurement values ​​can be transferred to smartphones and tablets (when connecting optional wireless adapter Z3210). ●Newly designed sensor accurately detects minute leakage current (up to φ40mm in diameter). ●Can measure a wide range of currents from leakage current to load current. ●Complies with the performance standards of IEC/EN61557-13, the international leak clamp standard. ●Comparator function reduces detection time. Applications: ●For checking leakage current in ground wires. ●For preventive maintenance of equipment. ●For checking load current such as breaker capacity. Specifications: ●Leakage current (mA): 6 ●AC current (A): 200 ●Detection method: True RMS rectification ●Power supply (V): Batteries: 2 x AA alkaline batteries (LR03) ●Width (mm): 64 ●Depth (mm): 36 ●Height (mm): 233 ●Power supply: Batteries: 2 x AA alkaline batteries (LR03) ●Clamp diameter: 40 ●Conformity standards: EN61010 (safety), EN61326 (EMC), current measurement category: CAT4 300V/CAT3 600V ●Measurement functions: Frequency 15.0 Hz to 2000 Hz ●Filter function: Cutoff frequency 180 Hz ±30 Hz (-3 dB) when ON ●Functions: Maximum/minimum/average/maximum peak value/minimum peak value display, display value hold, auto hold, backlight, auto power save, Buzzer sound, Event count display, Comparator, Simple event record, Inrush current measurement Material/Finish: ●Not disclosed Set contents/Accessories: ●Carrying case x 1 ●AA alkaline battery (LR03) x 2 ●Instruction manual x 1 ●Cautions for use x 1
