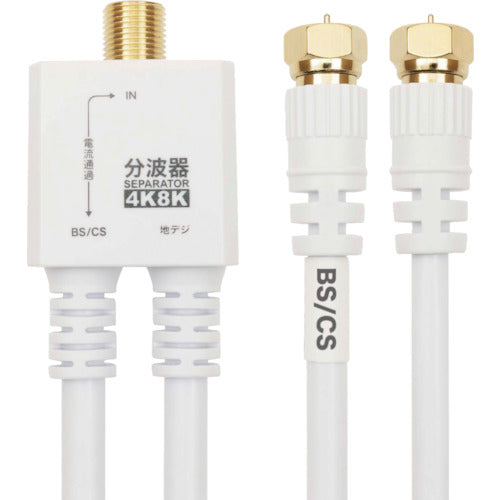

HORIC Antenna Splitter with Integrated Cable 20cm White Screw-type Connector AE-563WH 1 pc

Catalog number: AE-563WH Features: ● Efficiently separates terrestrial (UHF) and satellite (BS/110°CS) signals, allowing you to watch terrestrial digital, BS, and 110°CS broadcasts on one TV. ● In addition to conventional terrestrial digital, BS, and 110°CS broadcasts, it also supports the latest 4K/8K broadcasts. ● The splitter body and output cable are integrated, reducing connection loss compared to separate types. ● Can supply power to BS antennas. Applications: ● For splitting terrestrial digital and BS/CS signals. Specifications: ● Cable length (mm): 200 ● Color: White ● Splitter specifications ● Input frequency: 47 to 3224 (MHz) ● Output frequency: U/V output terminal 47 to 862 (MHz) BS/CS output terminal 950 to 3224 (MHz) (cable specifications) ● Cable standard: S-4C-FB ● Connector standard: F type ● Connector shape: Screw type (gold-plated specification) ● Connector size: W approx. 12.5 x H approx. 12.5 x D approx. 32.75 mm ● Impedance: 75 Ω ● Cable diameter: 6 mm ● Cable length: 20 cm
