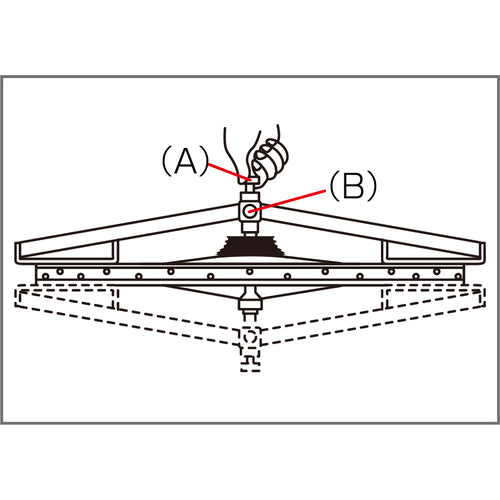

Catalogue number: C-335 Features: *This gauge checks whether the center of the hub's overlock nut dimensions is aligned with the center of the assembled rim. *Align the center bolt (A) with the hub's lock nut, and secure the lock bolt (B) at a position where the rim is in close contact with the body. *In this state, place the gauge on the other side of the rim and check the gap between the body and the rim/hub. Specifications: *Applicable range: 18 to 28 inches *Total length: 690 mm
