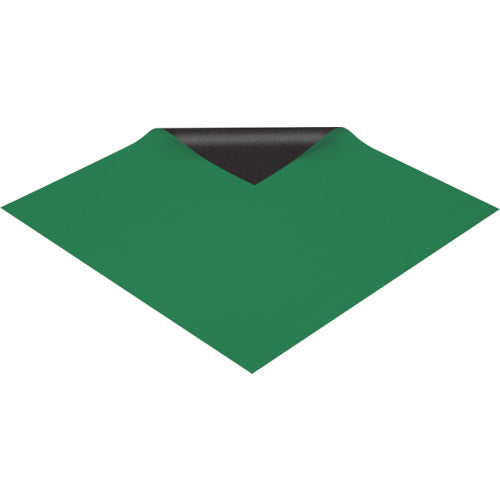

HOZAN Conductive Color Mat F-722 1 sheet

Catalog number: F-722 Features: ● PVC mat that is compliant with the RoHS Directive and has excellent abrasion resistance and UV resistance. ● Less prone to warping, and more durable than NBR. ● Can be used in clean environments of cleanliness class 6 (equivalent to class 1000 of the US Federal Standard 209E standard)*. *Proven in dust generation tests at the Kaken Test Center. (JIS B 9923) Specifications: Color: Green Width (mm): 1000 Length (mm): 1000 Thickness (mm): 2 Surface resistance (Ω): 1×10^4＜Rp＜1×10^9Ω Gloss: None Length (m): 1 External dimensions W (m): 1 External dimensions L (m): 1 Weight (kg): 33 Thickness (mm): 2 ESD control value: 1×104＜Rp＜1×109Ω Cleanliness guide: Class 6 (ISO14644-1/JIS B 9920-1) Class 1000 (US Federal Standard 209E) PVC mat with excellent abrasion resistance and UV resistance that complies with the RoHS Directive Material/Finish: Conductive polyvinyl chloride (PVC) Note: Earth wire is not included. Please purchase F-127 or F-27 separately. *Earth wire is not included. (Please purchase F-127 or F-27 separately.)
