ICOMES 4mm Micro Actuator MUI301 (Miracle Gear) MUI301 1 piece

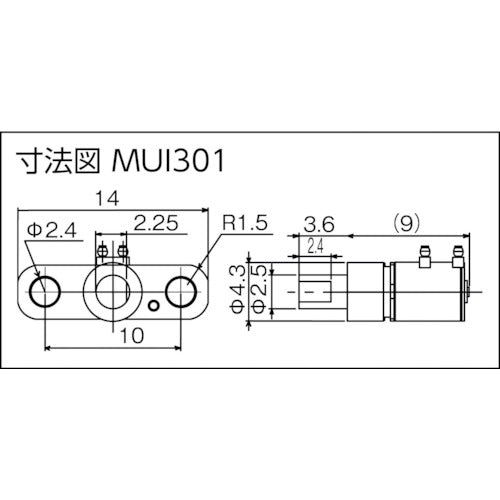

Catalog number: MUI301 Features: ● A small micro actuator that combines a plastic micro gear reducer and a stepping motor. Applications: ● For small products such as micro robot joints and micro pumps. Specifications: ● Outer diameter (mm): 4.3 ● Length (mm): 9 ● Reduction method: Magic ● Reduction ratio: 1/79.2 ● Rated voltage (V): 3 ● Output torque (mN･m): 0.3 ● Motor (2-phase stepping motor) ● Number of steps per rotation (1584) ● Motor resistance value (85Ω) Material/Finish: ● Stainless steel, resin Set contents/Accessories: ● Cable ● Circuit board ● Product catalog ● Inspection report Caution: ● Depending on the driving conditions, the motor part may become hot during long periods of continuous operation, which may cause damage to the coil. Please be careful.
