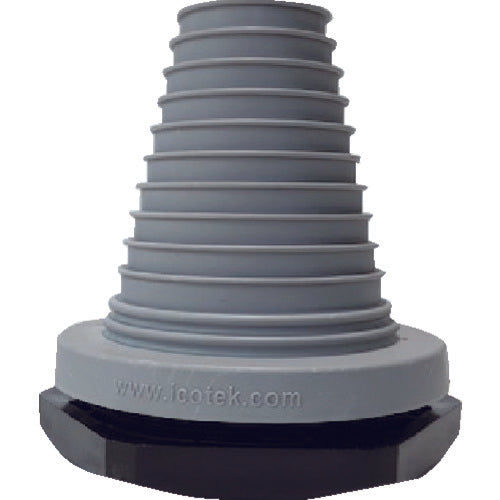

icotek cable entry grommet 39-60mm KEL-DPF75-39-60-42657 1 piece
icotek cable entry grommet 39-60mm KEL-DPF75-39-60-42657 1 piece
Regular price
¥2,990
Regular price
Sale price
¥2,990
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: KEL-DPF75-39-60-42657 Features: ●Highly elastic rubber allows large diameter cables to be inserted directly. ●Quick and easy assembly without tools. ●Can bend and install stiff cables. ●Fits metric mounting holes. Applications: ●For sealing and fixing cables of unknown diameter (39mm to 60mm). ●Pyramid shape allows flexible cable positioning. Specifications: Color: Gray; Suitable wire diameter (mm): 39-60; Mounting screw: 75mm; Spanner size (mm): 75; Suitable plate thickness: 1.5-5mm; Height (mm): 82.4..; Type: Grommet; Outer diameter (mm): 89; Total length (mm): 82.4; Tightening range (mm): 39-60; Gray section (mm): 71.4; EN45545-2; ECOLAB approved; Halogen free; Silicone free; Round; Maximum IP68; UL94-V0 Material/Finish: Frame: Polyamide, Plasmid: Elastomer
