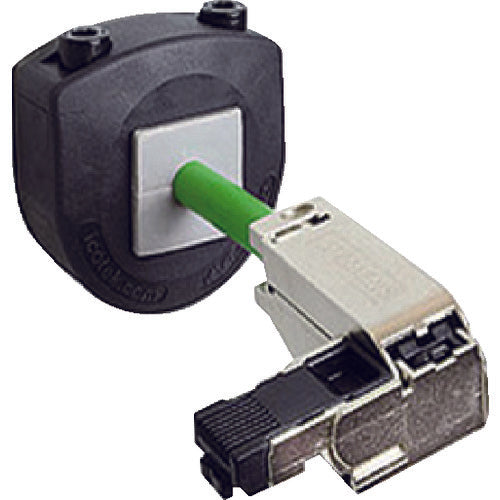

icotek Circular Split Cable Gland for 1 pc KVT-ER25-45450 1 pc

Catalogue number: KVT-ER25-45450 Features: ●Can accommodate one cable with connector and ring terminal with diameters from 1 mm to 17 mm. ●Very high strain relief in accordance with EN62444. ●Maintains the warranty of terminated cables. ●Modifications, repairs and maintenance can be carried out faster and easier. Applications: ●For control panels. ●For panel through holes. ●For fixing cables and fluid hoses to one round through hole. ●For protection class up to IP68. Specifications: Color: Black; Suitable wire diameter (mm): 1-17mm; Mounting screw: Included lock nut; Wrench size (mm): M25; Suitable plate thickness: 1-10mm; Grommet: For 1 piece; Height (mm): 44.2; Width (mm): 46; Depth (mm): 38 (including thread); Length (mm): 46; Screw size (mm): M25X1.5; Halogen free; Silicone free; UL94-V0; ECOLAB approved; IP66 (square); IP68 (round); Strain relief EN62444; Material/Finish: Body: Polypropylene, Integrated gasket: Elastomer
