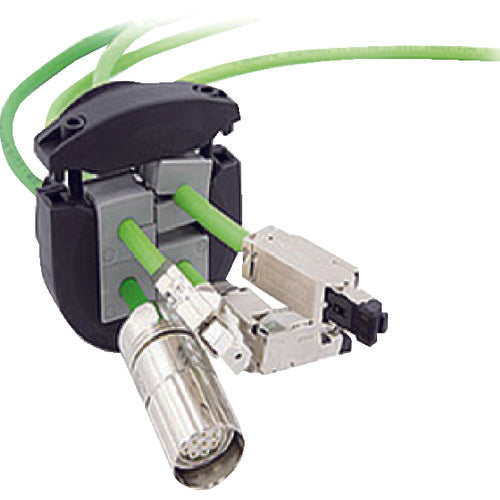

Icotek Circular Split Cable Gland for 4 Pieces KVT-ER63-4-45456 1 Piece

Catalog number: KVT-ER63-4-45456 Features: ●Can accommodate up to 4 cables with connectors and round terminals with diameters from 1 mm to 17 mm. ●Very high strain relief in accordance with EN 62444. ●Maintains the warranty of terminated cables. ●Modifications, repairs and maintenance can be carried out faster and easier. Applications: ●For control panels. ●For panel through holes. ●For consolidating 10 cables or fluid hoses into one round through hole. ●For protection class up to IP68. Specifications: Color: Black; Suitable wire diameter (mm): 1-17mm; Mounting screws: Lock nuts included; Wrench size (mm): M63; Suitable plate thickness: 1-10mm; Grommet: For 4 pcs; Height (mm): 74.2; Width (mm): 74; Depth (mm): 36 (including thread); Length (mm): 74; Screw size (mm): M63X1.5; Halogen free; Silicon free; UL94-V0; ECOLAB approved; IP66 (square); IP68 (round); Strain relief EN62444; Material/Finish: Body: Polypropylene, Integrated gasket: Elastomer
