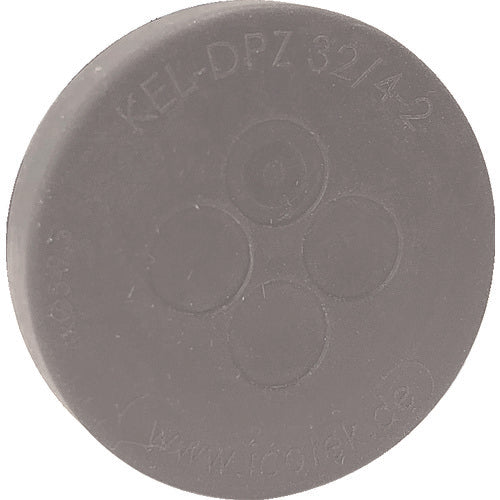

icotek [Sold out product] Round cable entry plate φ32 for 4 cables KEL-DPZ32-4-2-43733 1 piece

Catalogue number: KEL-DPZ32-4-2-43733 Features: ● Cut cables or fluid hoses can be pushed in directly by breaking through the membrane. ● Up to four 5 to 9.5 mm cables can be assembled. ● Quick and easy assembly without tools. ● High cable density. Applications: ● For consolidating up to four cables with different outer diameters in one round hole. Specifications: Color: Gray; Suitable wire diameter (mm): 5-9.2mm; Mounting screws: Special lock nuts included; Wrench size (mm): M32; Suitable plate thickness: 1-7mm; Grommet: For 4 pieces; Height (mm): 44; Width (mm): 44; Depth (mm): 8; Outer diameter (mm): 38; Clamp range (mm): 5-9.5; Maximum (pieces): 4; EN45545-2; ECOLAB approved; Halogen free; Silicone free; Strain relief EN62444; UL94-V0 Material/Finish: Frame: Polyamide, Seal plate: Elastomer
