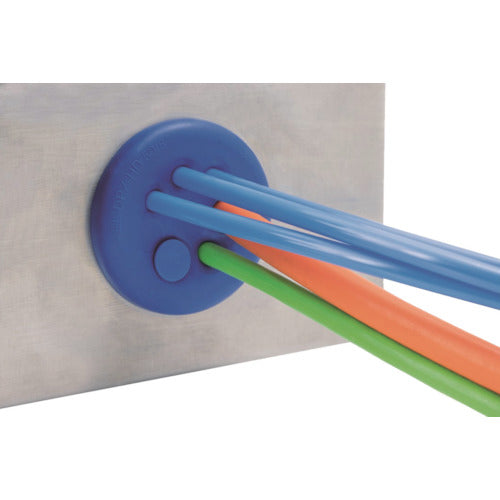

icotek [Sold out item] Aggregated round cable entry plate (FDA compliant, 10 wires) KEL-DPZ-HD50/10-70356 1 piece

Catalogue number: KEL-DPZ-HD50/10-70356 Features: ●10 cables can be wired to one cable entry plate. ●A total of 10 cables can be wired to the 50 mm through hole: 7 cables of 3.2 to 6.5 mm, 2 cables of 5 to 10.2 mm, and 1 cable of 16 to 22.2 mm. Applications: ●For control panels of food manufacturing and processing equipment and pharmaceutical manufacturing equipment. For reducing the number of wiring holes. Specifications: Color: Blue. Suitable wire diameter (mm): 3.2-6.5 x 7, 5-10.2 x 2, 16-22.2 x 1. Mounting screw: 50mm. Spanner size (mm): 50. Suitable plate thickness: 1.5-6mm. Height (mm): 22. External dimensions (mm): 62. Mounting hole diameter (mm): 50.4. H (mm): 8. Screw size (mm): M50x1.5. Maximum insertable cable outer diameter (mm): 22.2. Number of holes: 10. Number of holes (pcs): 10. FDA compliant. 1935/2004/EG compliant. (EU)10/2011. Surface Ra = 0.421 μm. ISO 4287. IP68. ECOLAB approved. EN ISO 14644. Material/Finish: Body: Polyamide, Elastomer
