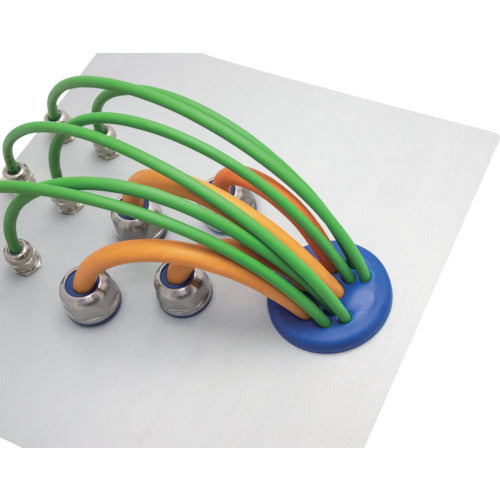

icotek [Sold out item] Aggregated round cable entry plate (FDA compliant, 13 wires) KEL-DPZ-HD63/13-70360 1 piece

Catalogue number: KEL-DPZ-HD63/13-70360 Features: ●13 cables can be wired to one cable entry plate. ●A total of 13 cables can be wired to the 63 mm through hole: 4 cables of 3.2 to 6.5 mm, 4 cables of 5 to 10.2 mm, and 5 cables of 9 to 16.2 mm. Applications: ●For control panels of food manufacturing and processing equipment and pharmaceutical manufacturing equipment. For reducing the number of wiring holes. Specifications: Color: Blue. Suitable wire diameter (mm): 3.2-6.5 x 4, 5-10.2 x 4, 9-16.2 x 5. Mounting screw: 63mm. Wrench size (mm): 63. Suitable plate thickness: 1.5-6mm. Height (mm): 22. External dimensions (mm): 75. Mounting hole diameter (mm): 63.4. H (mm): 8. Screw size (mm): M63X1.5. Maximum insertable cable outer diameter (mm): 16.2. Number of holes: 13. Number of holes (pcs): 13. FDA compliant. 1935/2004/EG compliant. (EU)10/2011. Surface Ra = 0.421 μm. ISO 4287. IP68. ECOLAB approved. EN ISO 14644. Material/Finish: Body: Polyamide, Elastomer
