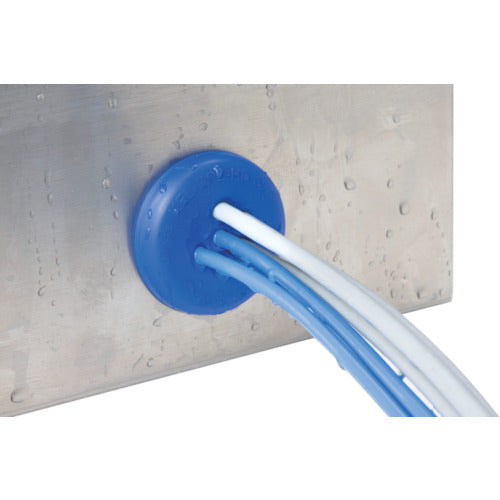

icotek [Sold out item] Aggregated round cable entry plate (FDA compliant, 4-wire) KEL-DPZ-HD32/4-70351 1 piece

Catalogue number: KEL-DPZ-HD32/4-70351 Features: ●4 cables can be wired to one cable entry plate. ●A total of 4 cables, 3.2-6.5 mm x 3 and 7.2-12.5 mm x 1, can be wired to the 32 mm through hole. Applications: ●For control panels of food manufacturing and processing equipment, and pharmaceutical manufacturing equipment. For reducing the number of wiring holes. Specifications: Color: Blue; Suitable wire diameter (mm): 3.2-6.5 x 3, 7.2-12.5 x 1; Mounting screw: 32mm; Wrench size (mm): 32; Suitable plate thickness: 1.5-7mm; Height (mm): 22; External dimensions (mm): 44; Mounting hole diameter (mm): 32.3; H (mm): 8; Screw size (mm): M32x1.5; Maximum insertable cable outer diameter (mm): 12.5; Number of holes: 4; Number of holes (pcs): 4; FDA compliant; 1935/2004/EG compliant; (EU)10/2011; Surface Ra = 0.421 μm; ISO 4287; IP68; ECOLAB approved; EN ISO 14644. Material/Finish: Body: Polyamide, Elastomer
