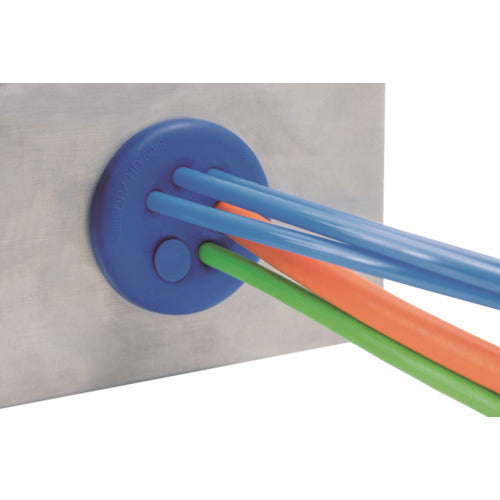

icotek [Sold out item] Aggregated round cable entry plate (FDA compliant, 8 wires) KEL-DPZ-HD50/8-70355 1 piece

Catalogue number: KEL-DPZ-HD50/8-70355 Features: ●8 cables can be wired to one cable entry plate. ●A total of 8 cables, 5 to 10.2 mm x 5 and 7.2 to 12.5 mm x 3, can be wired through a 50 mm through hole. Applications: ●For control panels of food manufacturing and processing equipment and pharmaceutical manufacturing equipment. For reducing the number of wiring holes. Specifications: Color: Blue; Suitable wire diameter (mm): 5-10.2 x 5, 7.2-12.5 x 3; Mounting screw: 50mm; Wrench size (mm): 50; Suitable plate thickness: 1.5-6mm; Height (mm): 22; External dimensions (mm): 62; Mounting hole diameter (mm): 50.4; H (mm): 8; Screw size (mm): M50x1.5; Maximum insertable cable outer diameter (mm): 12.5; Number of holes: 8; Number of holes (pcs): 8; FDA compliant; 1935/2004/EG compliant; (EU)10/2011; Surface Ra = 0.421 μm; ISO 4287; IP68; ECOLAB approved; EN ISO 14644. Material/Finish: Body: Polyamide, Elastomer
