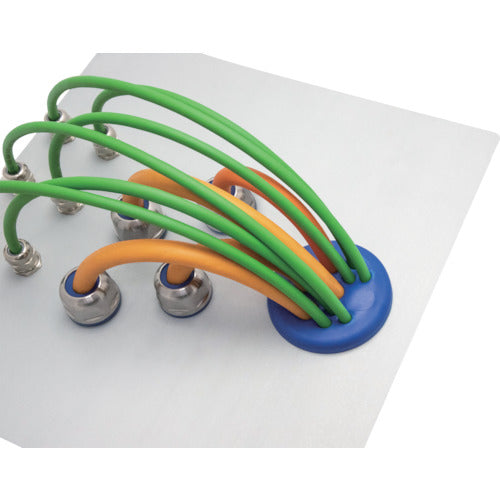

icotek [Sold out item] Aggregated round cable entry plate (FDA compliant, 9 wires) KEL-DPZ-HD63/9-70359 1 piece

Catalogue number: KEL-DPZ-HD63/9-70359 Features: ●9 cables can be wired to one cable entry plate. ●A total of 9 cables can be wired to the 63mm through hole: 1 cable from 3.2 to 6.5 mm, 3 cables from 5 to 10.2 mm, 4 cables from 9 to 16.2 mm, and 1 cable from 16 to 22.2 mm. Applications: ●For control panels of food manufacturing and processing equipment and pharmaceutical manufacturing equipment. For reducing the number of wiring holes. Specifications: Color: Blue. Suitable wire diameter (mm): 3.2-6.5 x 1, 5-10.2 x 3, 9-16.2 x 4, 16-22.2 x 1. Mounting screw: 63mm. Spanner size (mm): 63. Suitable plate thickness: 1.5-6mm. Height (mm): 22. External dimensions (mm): 75. Mounting hole diameter (mm): 63.4. H (mm): 8. Screw size (mm): M63X1.5. Maximum insertable cable outer diameter (mm): 22.2. Number of holes: 9. Number of holes (pcs): 9. FDA compliant. 1935/2004/EG compliant. (EU)10/2011. Surface Ra = 0.421 μm. ISO 4287. IP68. ECOLAB approved. EN ISO 14644. Material/Finish: Body: Polyamide, elastomer
