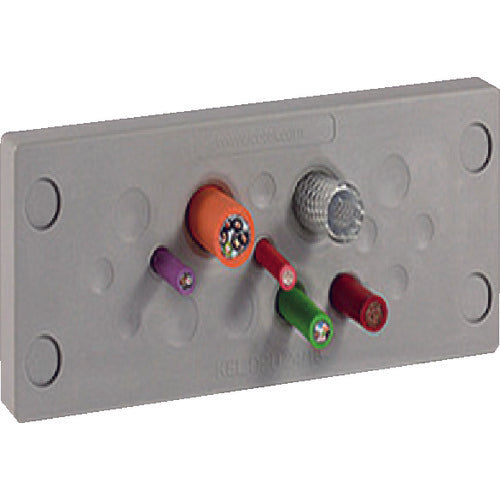

icotek Square Cable Entry Plate for 21 Cables KEL-DPU24-21-43930 1 pc

Catalogue number: KEL-DPU24-21-43930 Features: ● For directly inserting cut cables or fluid hoses by breaking through the membrane. ● For accommodating up to 21 pieces of 3.2 to 12.5 mm. ● Can be attached either by snap or screw. ● High strength and stability. Applications: ● For aggregation of up to 21 cables or fluid hoses. ● Can be attached either by snap or screw. ● For high degree of protection and strain relief. Specifications: Color: Gray; Suitable wire diameter (mm): 3.2-12.5mm; Mounting screw: M5 screw; Suitable plate thickness: Not specified, but snap-in installation is 1.5-2mm only; Grommet: For 21 pieces; Height (mm): 58; Width (mm): 147; Depth (mm): 14; Width (mm): 147; Depth (mm): 14; Clamp range (mm): 3.2-12.5; Maximum (pieces): 21; EN45545-2; ECOLAB approved; Halogen free; Silicone free; Strain relief EN62444; UL94-V0; Material/Finish: Frame: Polypropylene, Seal plate: Elastomer
