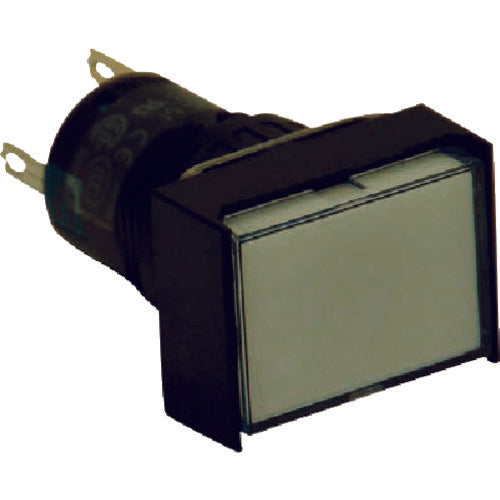

IDEC Φ16 rectangular illuminated push button switch AL6H-M14JW 1 piece

Catalogue number: AL6H-M14JW Features: ●Short body 22mm integrated type, light duty type●UL, CSA, CCC certified and EN standard compliant. ●Short body 22mm integrated type with high performance contact mechanism. Applications: ●Small unit used as both indicator light and push button. Specifications: ●Operation: Momentary ●Contact configuration: 1c ●Button/illumination color: Pure white ●Lens type push button dimensions: 18 x 24mm ●LED illumination, AC/DC 24V, built-in Materials/Finish: ●Body: Polyacetal ●Operation section (lens): Polyarylate ●Terminal section: Brass (silver plated) ●Stop plate: Stainless steel
