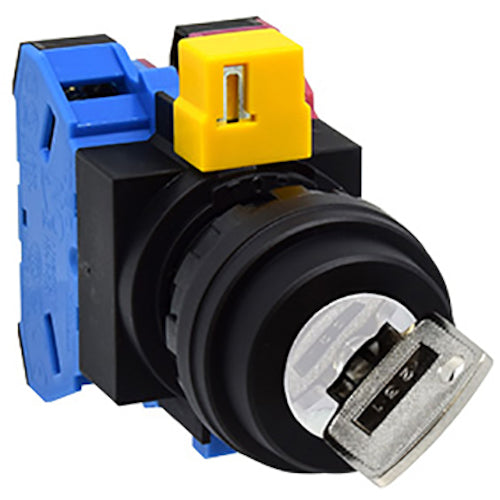

IDEC Φ22 key switch HW1K-2B10 1 piece

Catalog number: HW1K-2B10 Features: ●●Φ22 HW series key-operated selector switch. ●The SS terminal with finger protection structure realizes safety and labor saving. ●Uses a rolling contact method that self-cleans the contact area. ●c-UL certified product and EN standard compliant product. Specifications: ●●Notch angle 90°●Number of notches 2●Operation Stops at each position●Key removal position Left●Key No. 500 (standard)●Mounting hole size φ22●Contact configuration 1a●Contact specifications Silver contact●Operation method Key-operated selector switch●Terminal shape M3.5 screw terminal●Button shape Key●Protection structure IP65
