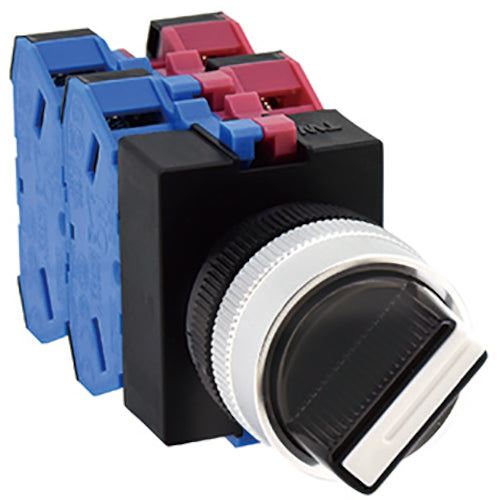

IDEC Φ22 selector switch 3 notches ASW322 1 piece

Catalog number: ASW322 Features: ●●Φ22TW series selector switch. ●Integrated type with emphasis on environmental resistance. ●Heavy type: Uses SS terminals with finger protection structure. ●UL, CSA, TUV, CCC certified. Specifications: ●●Notch angle 45°●Number of notches 3●Action: Stops at each position●Mounting hole size φ22●Contact configuration 2a2b●Contact specifications: Silver contacts●Operation method: Selector switch●Terminal shape: M3.5 screw terminal●Button shape: Arrow-shaped handle●Protection structure: IP65
