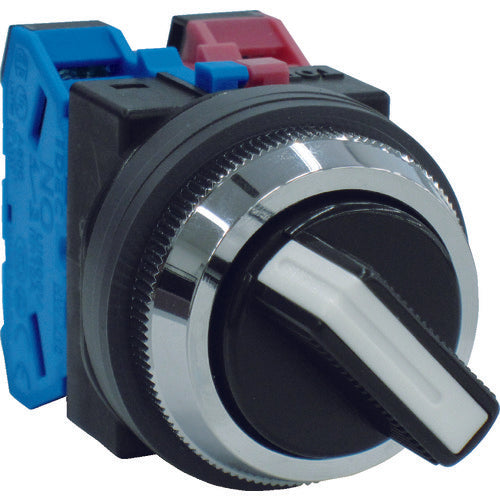

IDEC Φ30 selector switch 2 notches ASN211N 1 piece

Catalog number: ASN211N Features: ● Splash-proof and oil-proof. (NECA CA4520) ● UL, CSA, CCC certified and EN standard compliant. ● All φ22, 25, and 30 mm control unit models are equipped with the same contact block, improving convenience through safety and labor savings. ● IP20 contact block with integrated terminal cover protects against electric shock during operation. ● Contact blocks are color-coded for easy identification by operators. Specifications: ● Operation: 90° 2 notches ● Contact configuration: 1a-1b ● Panel cut size (mm): 30 ● Protection class: IP65 (IEC60529) ● Panel cut size: 30mm ● Protection structure: IP65 (IEC60529) Material/Finish: ● Body: Polyamide ● Operation part (lens): Polyacetal ● Terminal part: Copper ● Ring: Zinc die-cast
