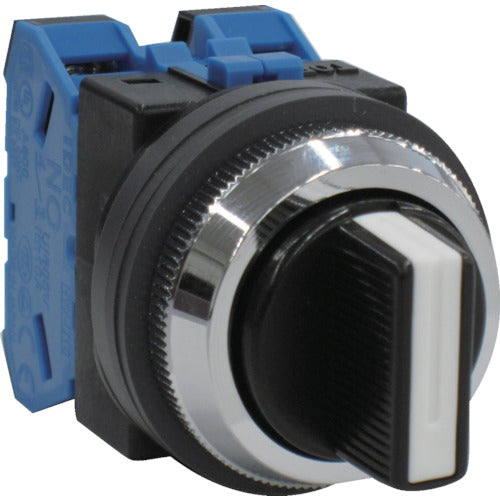

IDEC Φ30 selector switch 3 notches ASN320N 1 piece

Catalog number: ASN320N Features: ● Splash-proof and oil-proof. (NECA CA4520) ● UL, CSA, CCC certified and EN standard compliant. ● All φ22, 25, and 30 mm control unit models are equipped with the same contact block, improving convenience through safety and labor savings. ● IP20 contact block with integrated terminal cover protects against electric shock during operation. ● Contact blocks are color-coded for easy identification by operators. Specifications: ● Operation: 45° 3 notches ● Contact configuration: 2a ● Panel cut size (mm): 30 ● Protection class: IP65 (IEC60529) ● Panel cut size: 30mm Material/Finish: ● Body: Polyamide ● Operation part (lens): Polyacetal ● Terminal part: Copper ● Ring: Zinc die-cast
