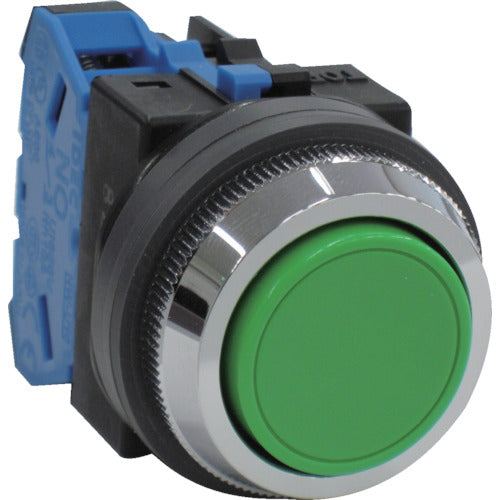

IDEC Φ30 round flat push button switch ABN110G 1 piece

Catalogue number: ABN110G Features: ● Splash-proof and oil-proof. (NECA CA4520) ● UL, CSA, CCC certified and EN standard compliant. ● All φ22, 25 and 30 mm control unit models are equipped with the same contact block, improving convenience through safety and labor savings. ● The IP20 contact block with an integrated terminal cover protects against electric shock during operation. ● Contact blocks are color-coded for easy identification by the operator. Specifications: ● Operation: Momentary ● Contact configuration: 1a ● Button color: Green ● Protection structure: IP65 (IEC60529) Material/Finish: ● Body: Polyamide ● Operation section (lens): Polyacetal ● Terminal section: Copper ● Ring: Zinc die-cast
