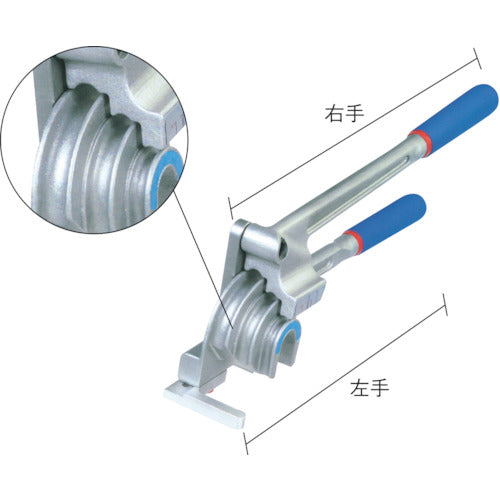

Catalog number: 370-FH Features: ●One unit can bend three sizes of outer diameter: 1/4 inch, 3/8 inch, and 1/2 inch. ●Ideal for room air conditioner piping. ●Lightweight because it is made of aluminum die-cast. Applications: ●For annealed copper pipes only. Specifications: ●Type: For inches ●Compatible pipe diameter (mm): 6.35, 9.53, 12.7 ●Bending radius R (inch): 1/4, 3/8, 1/2 ●Bending radius R (mm): 14.29, 23.81, 38.1 ●Dimensions (mm) left hand: 400 ●Dimensions (mm) right hand: 335 ●Bending thickness (mm) soft copper pipe: 1.2 ●Bending angle (°): 0 to 180 ●Compatible pipe diameter: 1/4, 3/8, 1/2 ●For inch sizes Material/Finish: ●Body: Aluminum
