inoc Innoquick Male Adapter Socket 304IQSMA25SUX25A 1 piece

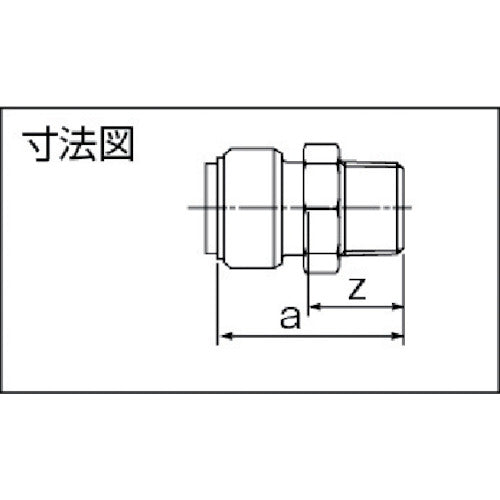

Catalog number: 304IQSMA25SUX25A Features: ● One-touch type that can significantly reduce installation time. Applications: ● For indoor water supply and hot water supply. Specifications: ● Nominal diameter: 25su x 1B ● a (mm): 56 ● z (mm): 26.0 ● Fluid temperature (℃): 80℃ or less ● Pipe pressure: 1.0MPa or less ● Pipe type: Stainless steel pipe for general piping (JIS G3448) Material/Finish: ● Body: SCS13A (SUS304), O-ring: EPDM (ethylene propylene rubber), cartridge ring: brass (nickel plated), release ring: acetal copolymer, grab ring: stainless steel (specially treated), protection ring: nylon Caution: ● Do not join to pipe types other than the compatible types. ● Do not use lubricants or adhesives when joining pipes. ● If the outer surface of the pipe is scratched, cut off the scratched part and join with the unscratched part. ● Never disassemble the fitting. ● When installing, be sure to use the dedicated line marker and remover.
