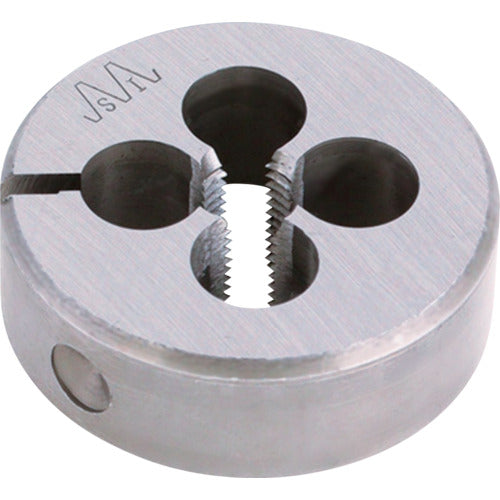

ISF Thread Cutting Die Metric Thread Fine Thread 38 Diameter M16X1.0 IS-RD-38-M16X1.0 1 pc

Catalog number: IS-RD-38-M16X1.0 Features: ● A female threaded tool with a hole to allow chips to escape. ● Comes with an adjustment screw. Applications: ● Machining threads: Metric fine threads ● For machining male threads. ● Workpiece material: Low carbon steel Specifications: ● Nominal size: M16 ● Pitch (mm): 1.0 ● Outside diameter (mm): 38.0 ● Thickness (mm): 13 ● Machining threads: Metric threads ● Outside diameter (mm): 38 ● Comes with an adjustment screw Material/Finish: ● Alloy tool steel (SKS2) Caution: ● Cannot be used with stainless steel screws.
