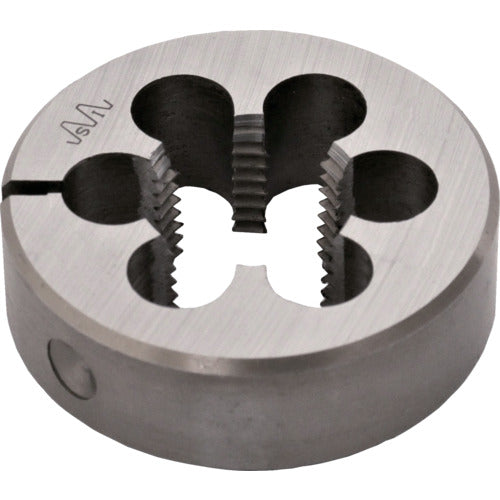

ISF Thread Cutting Die Metric Thread Fine Thread 50 Diameter M22X1.0 IS-RD-50-M22X1.0 1 pc

Catalogue number: IS-RD-50-M22X1.0 Features: ●A female-threaded tool with a hole to allow chips to escape. ●Comes with an adjustment screw. Applications: ●Machined threads: Metric fine threads ●For machining male threads. ●Workpiece material: Low carbon steel Specifications: ●Nominal size: M22 ●Pitch (mm): 1.0 ●Outer diameter (mm): 50.0 ●Thickness (mm): 16 ●Machined threads: Metric threads ●Outer diameter (mm): 50 ●Comes with an adjustment screw Material/Finish: ●Alloy tool steel (SKS2) Caution: ●Cannot be used with stainless steel screws.
