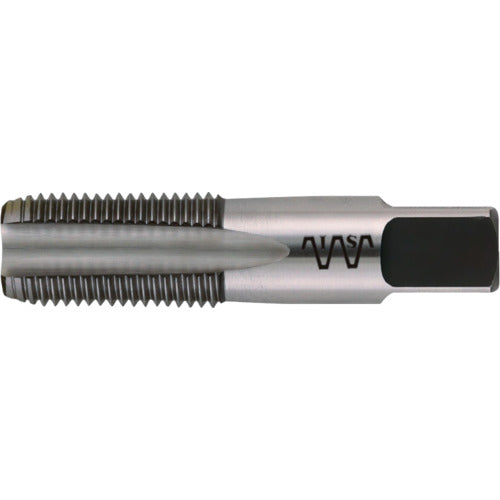

ISF Parallel Pipe Tap 1/8 PF IS-S-PF018 1 piece

Catalog number: IS-S-PF018 Features: ●Tungsten steel pipe tap. ●More economical than high speed steel. ●Parallel PF taps for pipe threads are used for threading pipes and pipe parts, etc., where the main purpose is mechanical connection, and the PF female threads processed with PF taps are used in combination with PF male threads. Applications: ●Tungsten pipe taps. ●Cutting materials: General steel and light alloys Specifications: ●Precision: JIS Class 3 ●Thread length (mm): 19 ●Total length (mm): 55 ●Shank diameter (mm): 8.0 ●Shank square section (mm): 6.0 ●Pilot hole diameter (mm): 8.6 ●Nominal size x number of threads: 1/8 x 28PF ●Thread length (mm): 19 ●For tungsten steel pipe threads Material/Finish: ●Alloy tool steel (SKS2)
