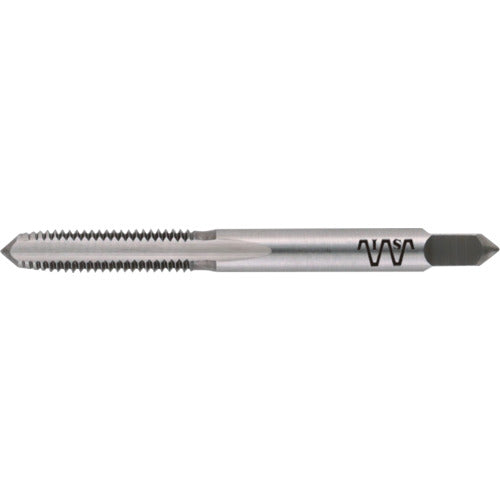

ISF SKS Hand Tap Metric Thread Fine Thread [Top #3] M6X0.5 IS-S-HT-M6X0.5-3 1 piece

Catalog number: IS-S-HT-M6X0.5-3 Features: ● A general tap used in a wide range of applications. ● The base material is SKS2 steel, making it economical. Applications: ● Machined threads: Metric fine threads ● Workpiece: General steel and light alloys Specifications: ● Tip: Top ● Nominal size: M6 ● Pitch (mm): 0.5 ● Overall length (mm): 55 ● Shank diameter (mm): 6.0 ● Shank square section (mm): 4.5 ● Pilot hole diameter (mm): 5.5 ● Machined threads: Metric threads ● Tip engagement: 1.5 threads ● Thread length (mm): 15 ● Number of engagement threads: 1.5 threads ● Tap grade: JIS grade 3 Material/Finish: ● Alloy tool steel (SKS2)
