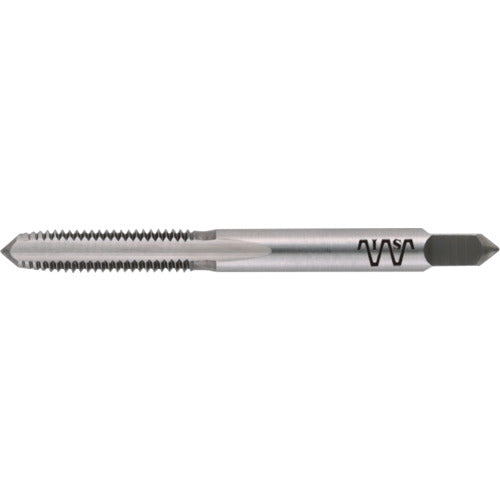

ISF SKS Hand Tap Unified Thread, Coarse Thread [Point #1] No. 6NC32 IS-S-HT-NO.6NC32-1 1 piece

Catalog number: IS-S-HT-NO.6NC32-1 Features: ● A general tap used in a wide range of applications. ● The base material is SKS2 steel, making it economical. Applications: ● Machined threads: Unified coarse threads ● Workpiece: General steel, light alloys, etc. Specifications: ● Tip: Tip ● Nominal dimensions: NC No. 6 ● Total length (mm): 48 ● Shank diameter (mm): 4 ● Shank square section (mm): 3.2 ● Pilot hole diameter (mm): 2.8 ● Number of threads: 32 ● Machined threads: Unified threads ● Tip bit: 9 threads ● Thread length (mm): 18 ● Number of biting threads: 9 threads ● Tap grade: JIS grade 3 Material/Finish: ● Alloy tool steel (SKS2)
