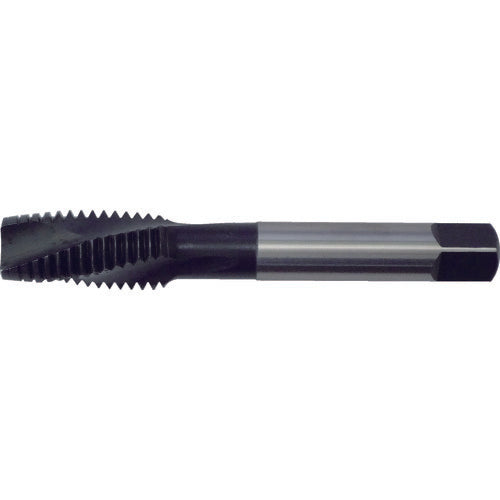

IS Jet Tap (Point Tap) Unified Thread, Fine Type 3/8NF24 JET-3/8NF24 1 pc

Catalog number: JET-3/8NF24 Features: ●High-speed tapping is possible. ●Large core thickness provides high torsional strength. ●Homo treatment is applied. Applications: ●For through hole machining. ●Cutting materials: general steel, low- and medium-carbon steel, alloy steel. Specifications: ●Precision: H3 ●Nominal dimensions: UNF3/8 ●Thread length (mm): 24 ●Total length (mm): 75 ●Shank diameter (mm): 7 ●Shank square section (mm): 5.5 ●Pilot hole diameter (mm): 8.4 ●Number of threads: 24 ●Number of engaging threads: 5 ●Machined thread: Unified thread ●Surface treatment: Homo treatment Material/Finish: ●High-speed steel (HSS-E)
