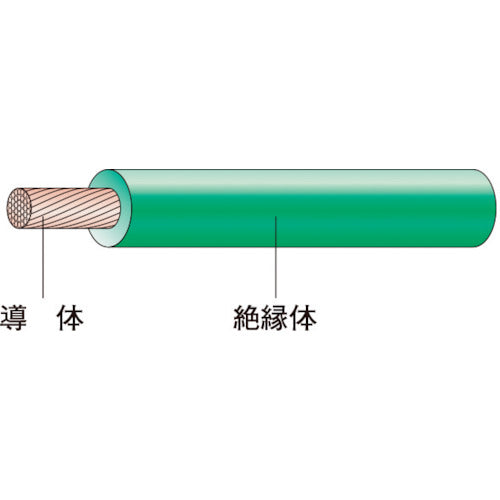

Catalog number: IV 14 SQ GR 30M JP Features: ● Short size that allows you to purchase only the amount you need when you need it. Applications: ● General electrical equipment, wiring for electrical equipment, wiring materials for wiring inside panels, etc. Specifications: ● Rated voltage (V): 600 ● Nominal conductor cross-sectional area: 14mm2 ● Number of conductor constituent wires/wire diameter (mm): 7/1.6 ● Conductor outer diameter (mm): 4.8 ● Insulation thickness (mm): 1.4 ● Sheath color: Green ● Finished outer diameter (mm): 7.6 ● Approximate mass (m): 175kg/k ● Heat resistance temperature (℃): 60℃
