JAPPY V-insulated V-sheath cable VV-F 1.6MMX2C 10M JP 1 roll

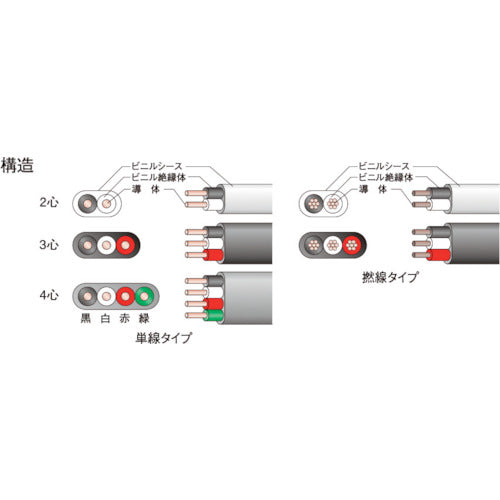

Catalog number: VV-F 1.6MMX2C 10M JP Features: ● Short length size that allows you to purchase only the amount you need when you need it. Applications: ● For indoor wiring in homes and buildings, wiring for air conditioners, etc. Specifications: ● Number of cores: 2 ● Size (mm2): 1.6 ● Finished outer diameter (mm): 9.4 ● Length (m): 10 ● Allowable current (30℃) (A): 18 ● Rated voltage (V): 200 Finished outer diameter (minor diameter) (mm): 6.2 ● Finished outer diameter (major diameter) (mm): 9.4 ● Allowable current (A): 18 ● Standard thickness of insulation: 0.8mm ● Standard thickness of sheath: 1.5mm ● Sheath color: Gray ● Operating temperature (maximum): 60℃ ● Operating temperature (minimum fixed): -25℃ ● Operating temperature: (minimum movement): -15℃ ● Conductor resistance: 8.92Ω/km
