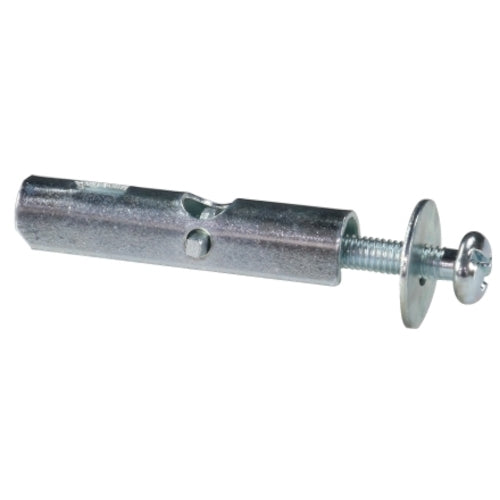

JEFCOM Pad Anchor AP-4 1 box

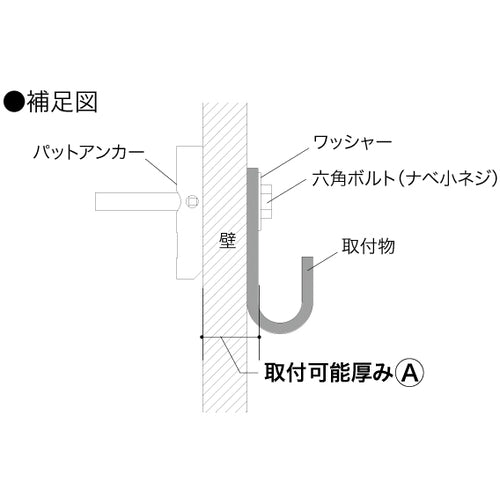

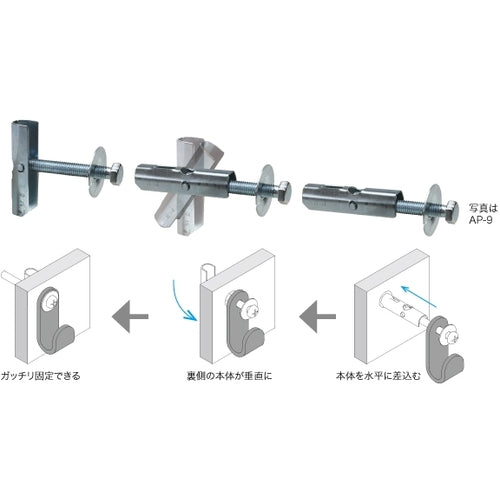

Catalog number: AP-4 Features: ●Can be installed without destroying the lightweight steel partitions or walls of architectural interiors. ●By inserting it horizontally through the pilot hole, the main body on the back of the wall stands vertically, allowing the wall and the object to be attached to be firmly fixed. English: Uses: ● For attaching fixtures and piping to hollow walls ● Water supply and drainage and gas work: Support for sanitary fixtures and gas supply pipes, etc. ● Heating and cooling work: Support for air conditioning and duct work, etc. ● Electrical work: Totalizer boards, meter boards, meter boxes, lighting fixtures, VE molding, metallic molding boxes, etc. ● Construction work: Interior partitions, accordion rail installation, installation of aisle and staircase hand support brackets, etc. Specifications: ● Drill diameter (pre-drilled hole) (mm): Diameter 12 ● Maximum pull-out strength: 245N (25kgf) ● Type: Pan head screw (included) ● Quantity: 10 ● Maximum installation thickness (wall + installation object) (mm): 15 or less ● Bolt/screw size (mm): M4 x 40 ● Main body size (mm): 7 x 8 x 39 ● Washer diameter (mm): Diameter 14 ● Pad anchor Material/Finish: ● SPHC (main body/washer) SWCH (screw) Note: ● Maximum pull-out strength will vary depending on the material used and construction conditions. ●Please note that this is not a guaranteed load.
