ジェフコム(株)

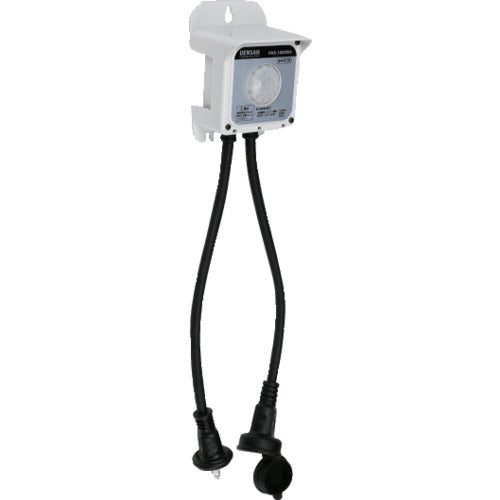

JEFCOM Human Body Heat Sensor Switch PHS-1000WA 1 piece
JEFCOM Human Body Heat Sensor Switch PHS-1000WA 1 piece
Regular price
¥7,366
Regular price
Sale price
¥7,366
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: PHS-1000WA Features: * Connect to lighting equipment and automatically turn on when it gets dark and someone passes by * The human body heat sensor switch detects the movement of infrared rays emitted from the human body within the sensor detection area, turns on for the set time, and then turns off automatically * Operates when the surrounding brightness is below a specified value * For lighting equipment only * For outdoor use under eaves Applications: * Ordinary homes, warehouses, factories, stores, parking lots, etc. Specifications: ●Width (mm): 84 ●Length (mm): 70 ●Height (mm): 125 ●Voltage (V): AC100 (50/60Hz) ●Rated current (A): 10 ●Operating temperature range (℃): -10 to +40 ●Current consumption (mA): 40mA (when not connected) ●Operating time: Approximately 7 seconds to 6 minutes (with adjustment function) ●Cord length (mm): Approximately 320 ●Rated current: 10A ●Current consumption: 40mA (when not connected) ●Detection area: Approximately 8m, horizontal detection angle 110 degrees ●Maximum connected load power: 1000W (incandescent load) ●Operating time: Approximately 7 seconds to 6 minutes (with adjustment function) ●Operating mode: With lighting illuminance adjustment function ●Operating temperature range: -10℃ to +40℃ ●Minimum control power: 10W or more
View full details
