JOPLAX Resin Socket for hose mounting with inner diameter of 13 mm on the other side TT-4NR 1 piece

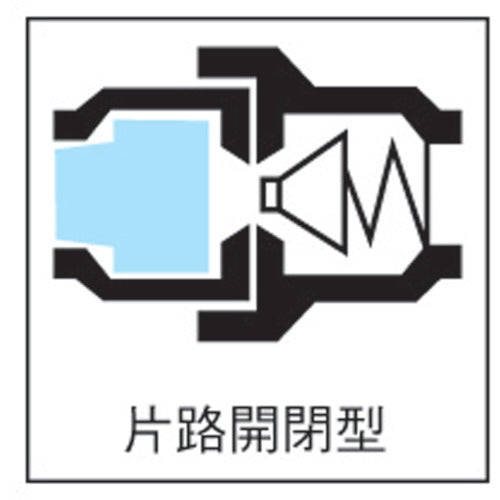

Catalog number: TT-4NR Features: ● Bamboo shoot type. ● One-touch connection method. ● Safety lock mechanism is standard equipment. ● Excellent impact resistance due to the use of engineering plastics. ● Made of plastic, it is lightweight and rust-free. Applications: ● General air piping. ● For the automotive and food industries. Specifications: ● Mating hose size (mm): φ13 ● Hexagonal face size (mm): 22 ● Maximum operating pressure (MPa): 1.0MPa ● Fluid used: Air ● Operating temperature (℃): 0-50 ● Mating hose size inner diameter (mm): 13 ● Normal operating pressure (MPa): 0.98 ● Fluid temperature: 0-50℃ ● Normal pressure: 0-1.0MPa ● One-way opening and closing type ● For hose installation Materials/Finish: ● Body: Polyphenylene ether (PPE) + nylon (PA) ● Sealing rubber: Nitrile rubber (NBR) Note: ● Only TT-2NR has a reinforcing insert (made of brass) in the bamboo shoot part.
