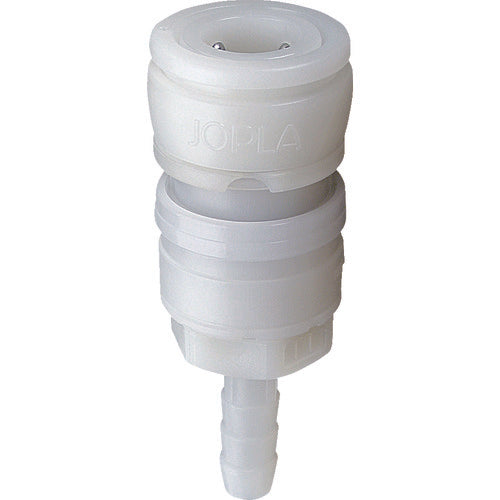

JOPLAX Resin Socket, Mating Hose Inner Diameter 7, JOPLAX PE Series, TTV-2E, 1 Piece

Catalog number: TTV-2E Features: ●One-touch connection method allows easy installation and removal. ●Used in the food, chemical and medical fields. ●One-way opening and closing. Applications: ●Hose piping joints, etc. Specifications: ●Matching hose size (mm): φ7 ●Hexagonal side (mm): 22 ●Operating temperature range (℃): 0-50 ●Maximum operating pressure (MPa): 0.5 ●Operating fluid: Water, chemicals (check each time) ●Hexagonal side (mm) body: 22 ●Operating temperature (℃): 0-50 ●Operating pressure: 0-0.5Mpa ●Matching hose size inner diameter (mm): 7 ●Operating pressure (MPa): 0.5 ●Liquid contact parts comply with the Food Sanitation Act/PL listed materials used ●Excellent chemical resistance ●Fluid temperature: 0-50℃ ●Normal pressure: 0-0.5MPa Materials/Finish: ●Resin part: Polyethylene (PE) ●Rubber part: Fluorine ●Spring: Stainless steel (SUS316)
