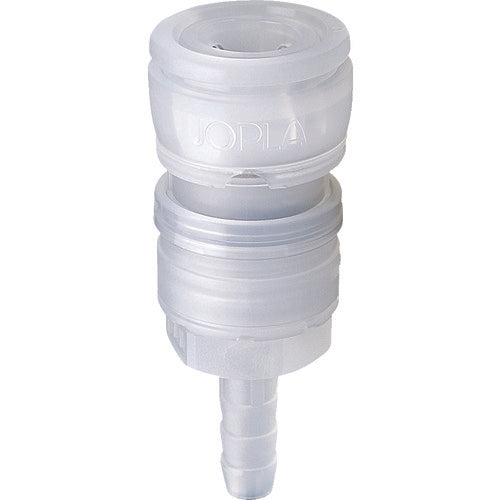

JOPLAX Resin Socket, Mating Hose Inner Diameter 7, JOPLAX PP Series, TTV-2P, 1 Piece

Catalog number: TTV-2P Features: ●One-touch connection method allows for easy installation and removal. ●Used in the food, chemical and medical fields. ●One-way opening and closing. Applications: ●Hose piping joints, etc. Specifications: ●Matching hose size (mm): φ7 ●Hexagonal face size (mm): 22 ●Maximum operating pressure (MPa): 0.7Mpa ●Operating fluid: Water, solvent (check each time) ●Operating temperature (℃): 0-50 ●Matching hose size inner diameter (mm): 7 ●Operating pressure (MPa): 0.7 ●Liquid contact parts comply with the Food Sanitation Act/PL listed materials used ●Excellent chemical resistance ●Fluid temperature: 0-50℃ ●Normal pressure: 0-0.7MPa Materials/Finish: ●Resin part: Polypropylene (PP) ●Rubber part: Fluorine ●Spring: Stainless steel (SUS316)
